Medical Refrigerator

  1. Home
  2. Medical Refrigerator>2-8℃ Pharmacy Refrigerator
lab fridge
laboratory fridge
lab refrigerator
lab fridge
laboratory fridge
lab refrigerator

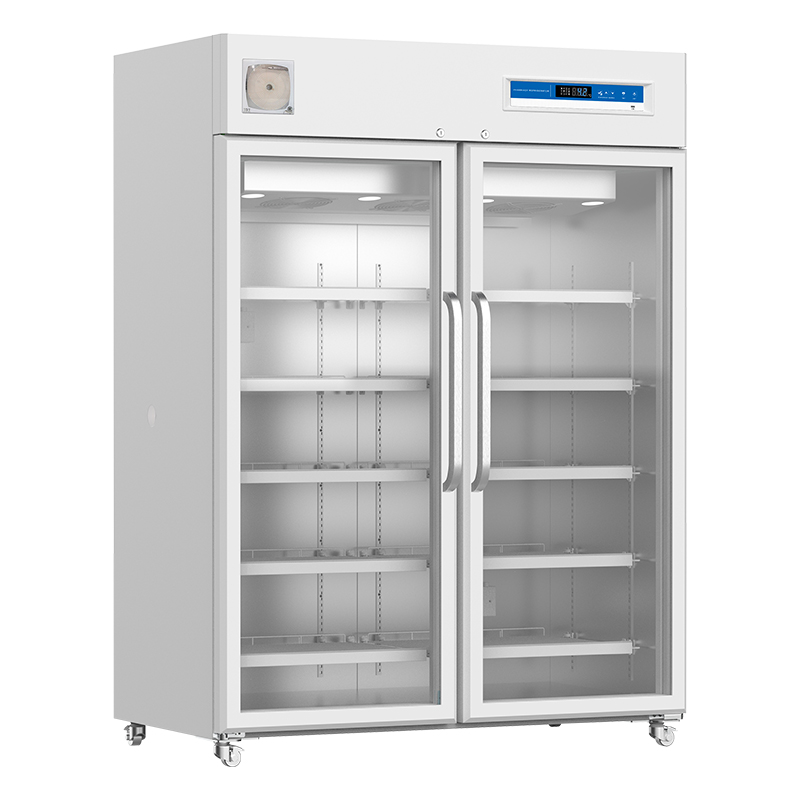

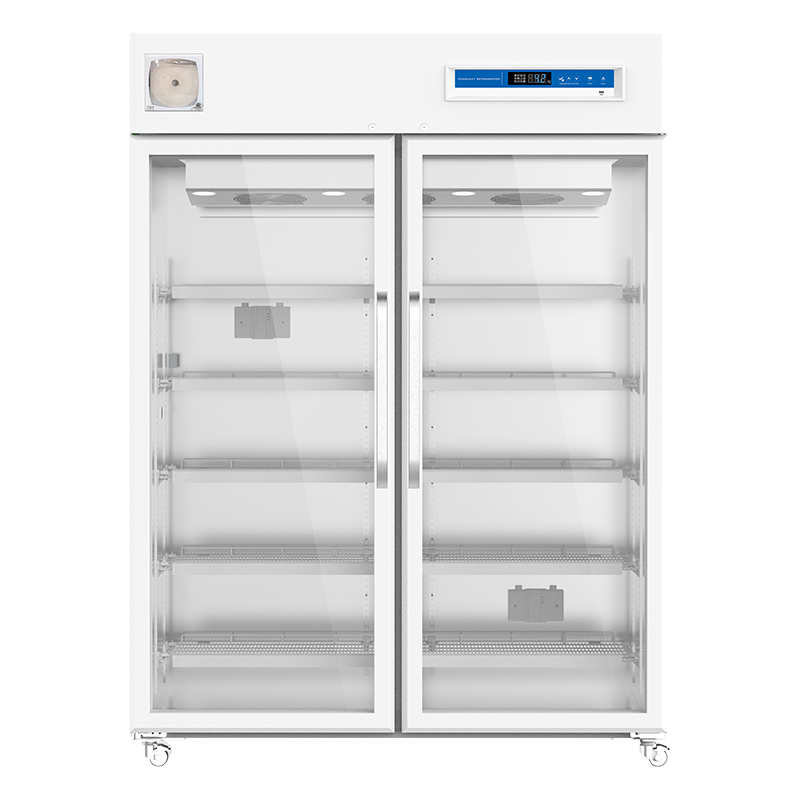

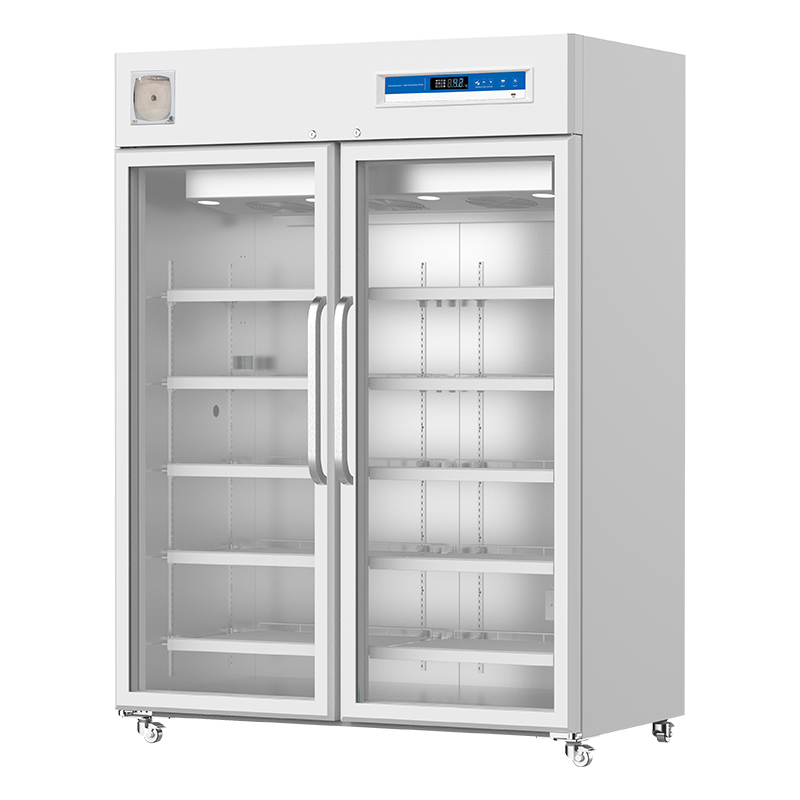

2~8ºC Double Glass Door Lab Laboratory Fridge

Item No. NW-YC1320L

• Capacity: 725 liter
• Temperature rage: 2- 8℃
• Upright standing style
• Glass door with electrical heating
• Alarm system for failure and exception
• Smart temperature control system
• Built-in USB interface for data storage
• Leading air cooling type for better temperature performance
• Improve energy saving efficiency by 40%
• Better anti-condensation electrical heating glass door
• 7 sensors for high precision of temperature control
• U-disk connected for the temperature data record

Descriptions
Datasheets
Downloads

Glass Door Pharmacy Fridge / Glass Door Lab Laboratory Fridge (NW-YC1320L)



  • Seven temperature probes can ensure high precision of temperature control with nearly no fluctuation and thus can improve safety.

  • Equipped with a USB export interface, which can be used for storing data from the last month to the current month automatically in PDF format.

  • With a U-disk connected, the temperature data can be stored continuously and automatically, in more than 2 years.

  • The interior lighting system with double LED lights ensures high visibility inside the cabinet.

  • A test port is available for bringing convenience to users in testing temperature inside the cabinet.

  • Large capacity of 1320L for maximum storage convenience to store vaccine, drugs, reagents, and other lab / medical materials.

  • 100% CFC free design for environment friendly with no ozone-damaging chemicals.




Nenwell Pharmacy fridge /  Lab Laboratory FridgeNW-YC1320L 2ºC~8ºC

Glass Door Pharmacy Fridge for Hospital and Clinic Medication and Medicine NW-YC320L with double swing glass doors is pharmaceutical grade fridge for vaccines, storing sensitive materials in pharmacies, medical offices, laboratories, clinics, or scientific institutions. It is produced in quality and durability, and meets the stringent guidelines demands for medical and laboratory grade. NW-YC1320L medical fridge provides you with 1320L of interior storage with adjustable 10 shelves for high efficient capacity storage. This medical / lab fridge is equipped with high -precision microcomputer temperature control system and ensures the temperature range in 2ºC~8ºC. And it comes with 1 high-brightness digital temperature display ensuring the display precision in 0.1ºC.

Leading air cooling refrigeration system
NW-YC1320L pharmacy fridge is equipped with multi-duct vortex refrigeration system and finned evaporator, which can prevent the frost completely and improve the temperature uniformity to a large extent. The high-efficiency air-cooling condenser and finned evaporator of this medical grade fridge ensures fast refrigeration.

Intelligent audible and visible alarm system
This vaccine refrigerator comes with multiple audible and visible alarm functions, including high/low temperature alarm, power failure alarm, low battery alarm, door ajar alarm, high air temperature alarm, and communication failure alarm.

Superb technology design
The electrical heating + LOW-E design with double consideration can achieve a better anti-condensation effect for the glass door. And this pharmaceutical fridge is designed with high-quality shelves made from PVC-coated steel wire with tag card for easily cleaning. And you can have an invisible door handle, ensuring elegance of appearance.

Glass Door Pharmacy Fridge for Hospital and Clinic Medication and Medicine (NW-YC1320L)

Glass Door Laboratory Fridge for Hospital and Clinic Medication and Medicine (NW-YC1320L)

Glass Door lab refrigerator (NW-YC1320L)




Nenwell Pharmacy Fridge / Lab Laboratory Fridge Series

Model NoTemp. RangExternal
Dimension(mm)
Capacity(L)RefrigerantCertification
NW-YC55L2~8ºC540*560*63255R600aCE/UL
NW-YC75L540*560*76475
NW-YC130L650*625*810130
NW-YC315L650*673*1762315
NW-YC395L650*673*1992395
NW-YC400L700*645*2016400UL
NW-YC525L720*810*1961525R290CE/UL
NW-YC650L715*890*1985650CE/UL
(During application)
NW-YC725L1093*750*1972725CE/UL
NW-YC1015L1180*900*19901015CE/UL
NW-YC1320L1450*830*19851320CE/UL
(During application)
NW-YC1505L1795*880*19901505R507/






2~8ºC Pharmacy Fridge / Lab Laboratory Fridge 1320L

ModelNW-YC1320L
  Capacity(L)1320
Internal Size(W*D*H)mm1340*670*1515
External Size(W*D*H)mm1453*881*1998
Package Size(W*D*H)mm1580*991*2179
NW/GW(Kgs)258/350
Performance
Temperature Range2~8ºC
Ambient Temperature16-32ºC
Cooling Performance5ºC
Climate ClassN
ControllerMicroprocessor
DisplayDigital display
Refrigeration
Compressor1pc
Cooling MethodAir cooling
Defrost ModeAutomatic
RefrigerantR290
Insulation Thickness(mm)55
Construction
External MaterialPCM
Inner MaterialAluminum plate with spraying (optional Stainless steel)
Shelves12 (coated steel wired shelf)
Door Lock with KeyYes
LightingLED
Access Port1pc. Ø 25 mm
Casters4 (2 with brake)
Data Logging/Interval/Recording TimeUSB/Record every 10 minutes/2 years
Door with HeaterYes
Alarm
TemperatureHigh/Low temperature, High ambient temperature, Condenser overheating
ElectricalPower failure, Low battery
SystemSensor failure,Door ajar, Built-in datalogger USB Failure, Communication failure
   Accessories
StandardRS485, Remote alarm contact, Backup battery



2~8ºC Pharmacy Fridge / Lab Laboratory Fridge 1320L

ModelNW-YC1320L
  Capacity(L)1320
Internal Size(W*D*H)mm1340*670*1515
External Size(W*D*H)mm1453*881*1998
Package Size(W*D*H)mm1580*991*2179
NW/GW(Kgs)258/350
Performance
Temperature Range2~8ºC
Ambient Temperature16-32ºC
Cooling Performance5ºC
Climate ClassN
ControllerMicroprocessor
DisplayDigital display
Refrigeration
Compressor1pc
Cooling MethodAir cooling
Defrost ModeAutomatic
RefrigerantR290
Insulation Thickness(mm)55
Construction
External MaterialPCM
Inner MaterialAluminum plate with spraying (optional Stainless steel)
Shelves12 (coated steel wired shelf)
Door Lock with KeyYes
LightingLED
Access Port1pc. Ø 25 mm
Casters4 (2 with brake)
Data Logging/Interval/Recording TimeUSB/Record every 10 minutes/2 years
Door with HeaterYes
Alarm
TemperatureHigh/Low temperature, High ambient temperature, Condenser overheating
ElectricalPower failure, Low battery
SystemSensor failure,Door ajar, Built-in datalogger USB Failure, Communication failure
   Accessories
StandardRS485, Remote alarm contact, Backup battery
medical_refrigerator_catalog_nenwell_biomedical.pdf
