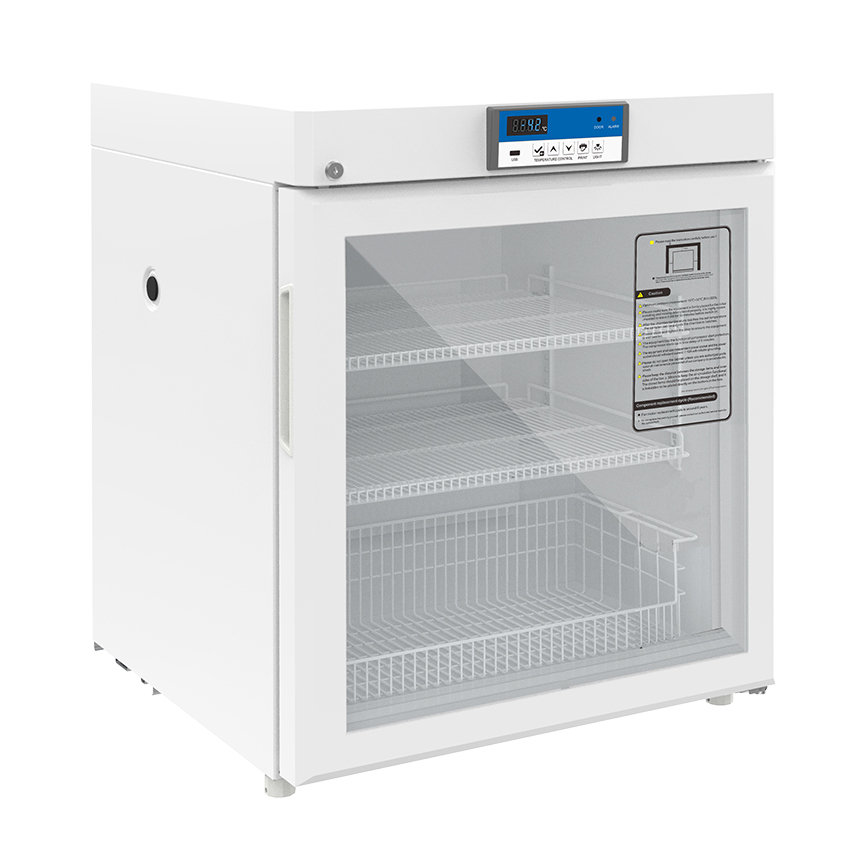

Under Counter Hospital Refrigerator for Biomedical Use

Item No. NW-YC130L

Function Features of Under Counter Medical Refrigerator 130L

  • Perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure , Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm

  • The small medical refrigerator with 3high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements

  • Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system

  • 1 cooling fan inside, working while door is closed, stopped while the door is opened

  • The CFC-free polyurethane foam insulating layer is environmentally friendly

  • The electrical heating glass door filled with insert gas performs well in thermal insulation

  • The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately

  • The door is equipped with a lock preventing from unauthorized opening and operation

Descriptions
Datasheets
Downloads

countertop medical fridge

Under Counter Hospital Refrigerator 130L

Nenwell 2ºC~8ºC Tabletop pharmacy refrigerator  YC-130L gives you a brand new appearance and is designed in smart under counter size. This small undercounter medical refrigerator is equipped with intelligent temperature controller and brings out constant temperature. It has transparent double-layer tempered glass door with the features of anti-condensation and electrical heating. There are multiple alarm functions to ensure safety of storage. The complete air-cooling design of the vaccine refrigerator ensures no worry about frosting. You can apply the pharmaceutical refrigerator in laboratories, hospitals, pharmacies, disease prevention and control centers, health centers, pharmaceutical factories, medical facilities, and more.


Accurate Control System
This 2ºC~8ºC small medical fridge for medicine comes with high precision temperature control system with high sensitive sensors. And it can well keep the temperature inside the cabinet in the range of 2ºC~8ºC. We design the pharmaceutical refrigerator with high brightness digital temperature and humidity display for automatic temperature control and ensure the display accurately in 0.1ºC.

Powerful Refrigeration System
The small medical / vaccine refrigerator is equipped with brand new compressor and condenser, which is for better cooling performance and well keeps the temperature uniformity with in 1ºC. It is air cooling type with feature of auto-defrost. And the HCFC-FREE refrigerant brings out more effective refrigeration and ensures environmentally friendly.

Ergonomic Operation Design
It has a front opening lockable door with full height handle. The inside of the pharmacy refrigerator is designed with lighting system for easy look. The light will turn on while door is opened, and the light will goes off while the door is closed. The cabinet is made of high quality steel, and the inner side material is Aluminum plate with spraying(Optional stainless steel), which is durable and easy to clean.

Hospital Under Counter Refrigerator Series


Model NoTemp. RangExternal
Dimension(mm)
Capacity(L)RefrigerantCertification
NW-YC55L2~8ºC540*560*63255R600aCE/UL
NW-YC75L540*560*76475
NW-YC130L650*625*810130
NW-YC315L650*673*1762315
NW-YC395L650*673*1992395
NW-YC400L700*645*2016400UL
NW-YC525L720*810*1961525R290CE/UL
NW-YC650L715*890*1985650CE/UL
(During application)
NW-YC725L1093*750*1972725CE/UL
NW-YC1015L1180*900*19901015CE/UL
NW-YC1320L1450*830*19851320CE/UL
(During application)
NW-YC1505L1795*880*19901505R507/

2~8ºC Nenwell Undercounter Medicine Refrigerator 130L

ModelNW-YC130L
  Capacity(L)130
Internal Size(W*D*H)mm554*510*588
External Size(W*D*H)mm650*625*810
Package Size(W*D*H)mm723*703*880
NW/GW(Kgs)51/61
Performance
Temperature Range2~8ºC
Ambient Temperature16-32ºC
Cooling Performance5ºC
Climate ClassN
ControllerMicroprocessor
DisplayDigital display
Refrigeration
Compressor1pc
Cooling MethodAir cooling
Defrost ModeAutomatic
RefrigerantR600a
Insulation Thickness(mm)L/R:48,B:50
Construction
External MaterialPCM
Inner MaterialAumlnum plate with spraying/Stainless steel(Optional stainless steel)
Shelves3 (coated steel wired shelf)
Door Lock with KeyYes
LightingLED
Access Port1pc. Ø 25 mm
Casters2+2( leveling feet)
Data Logging/Interval/Recording TimeUSB/Record every 10 minutes / 2 years
Door with HeaterYes
Alarm
TemperatureHigh/Low temperature, High ambient temperature
ElectricalPower failure, Low battery
SystemSensor failure, Door ajar, Built-in datalogger USB Failure, Communication failure
Accessories
StandardRS485, Remote alarm contact, Backup battery

2~8ºC Nenwell Countertop Medicine Refrigerator 130L

ModelNW-YC130L
  Capacity(L)130
Internal Size(W*D*H)mm554*510*588
External Size(W*D*H)mm650*625*810
Package Size(W*D*H)mm723*703*880
NW/GW(Kgs)51/61
Performance
Temperature Range2~8ºC
Ambient Temperature16-32ºC
Cooling Performance5ºC
Climate ClassN
ControllerMicroprocessor
DisplayDigital display
Refrigeration
Compressor1pc
Cooling MethodAir cooling
Defrost ModeAutomatic
RefrigerantR600a
Insulation Thickness(mm)L/R:48,B:50
Construction
External MaterialPCM
Inner MaterialAumlnum plate with spraying/Stainless steel(Optional stainless steel)
Shelves3 (coated steel wired shelf)
Door Lock with KeyYes
LightingLED
Access Port1pc. Ø 25 mm
Casters2+2( leveling feet)
Data Logging/Interval/Recording TimeUSB/Record every 10 minutes / 2 years
Door with HeaterYes
Alarm
TemperatureHigh/Low temperature, High ambient temperature
ElectricalPower failure, Low battery
SystemSensor failure, Door ajar, Built-in datalogger USB Failure, Communication failure
Accessories
StandardRS485, Remote alarm contact, Backup battery
