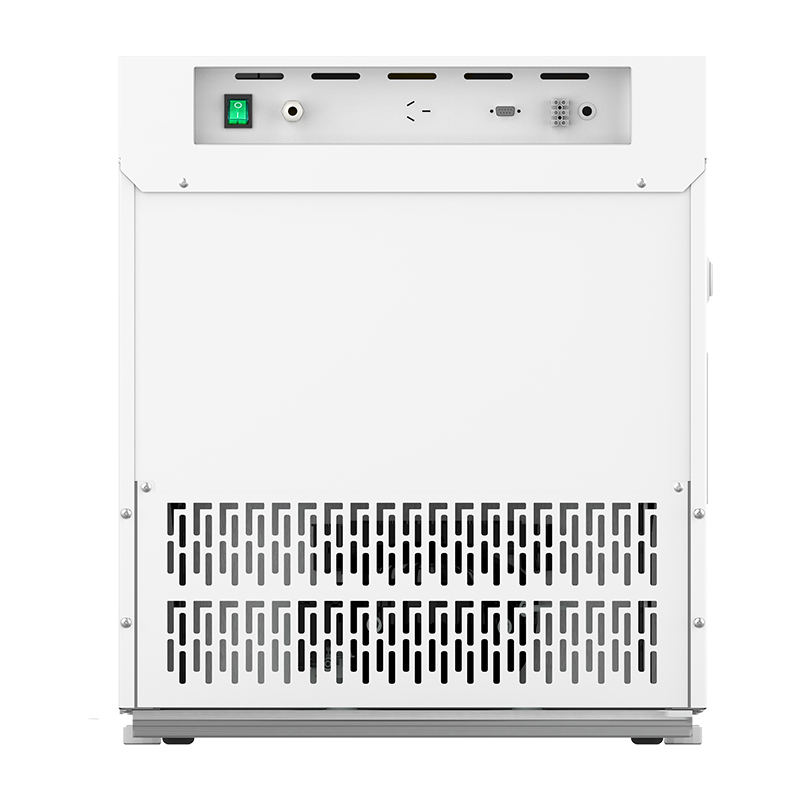

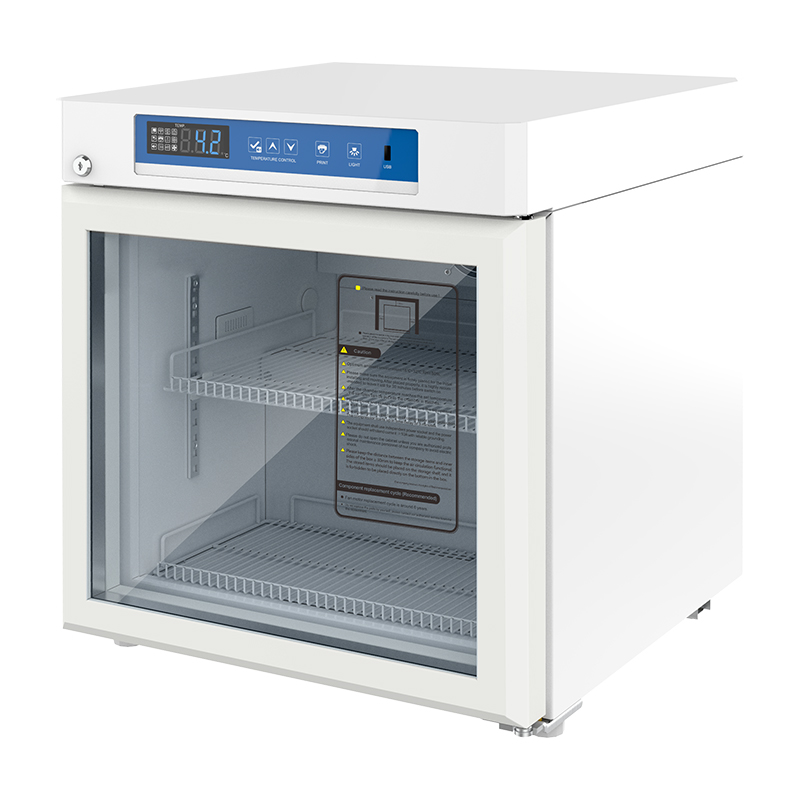

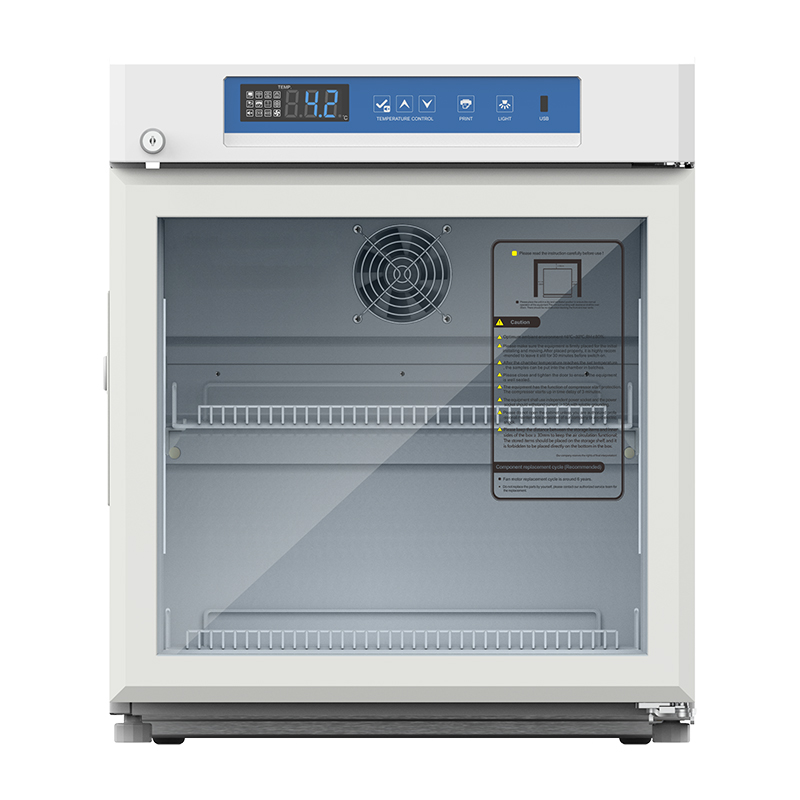

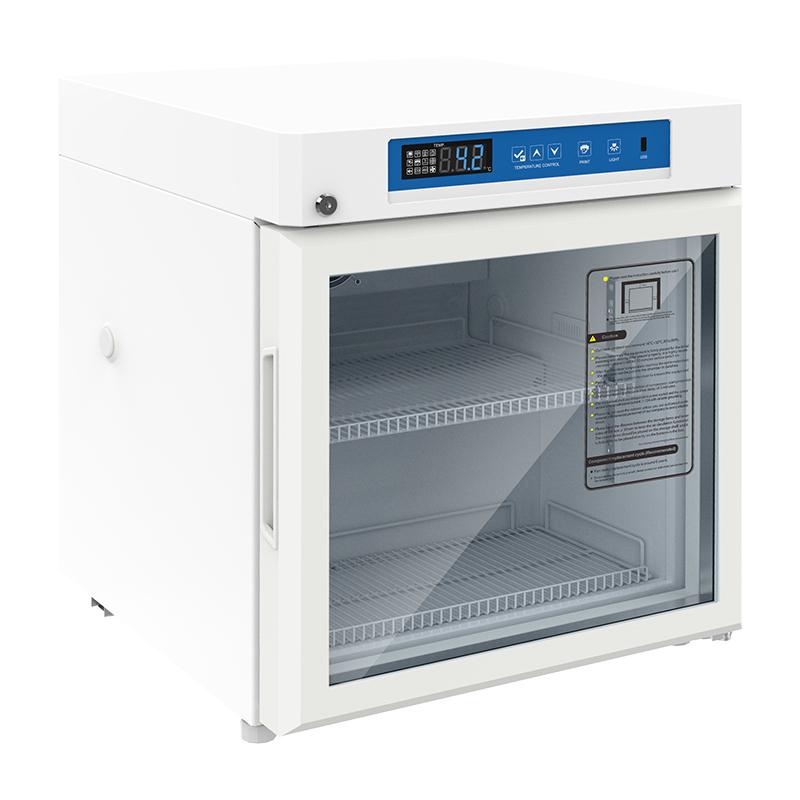

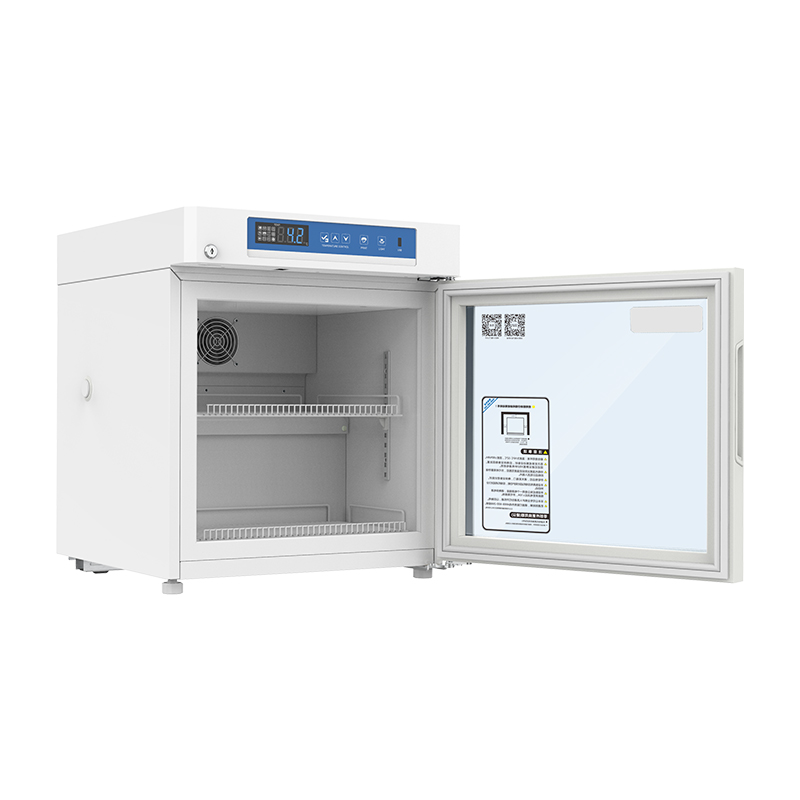

Small Medical Refrigerator for Vaccine and Pharmacy
Item No. NW-YC56L
Function Features of Medical Refrigerator 56L
Perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure , Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm
The small medical refrigerator with 3high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements
Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system
1 cooling fan inside, working while door is closed, stopped while the door is opened
The CFC-free polyurethane foam insulating layer is environmentally friendly
The electrical heating glass door filled with insert gas performs well in thermal insulation
The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
The door is equipped with a lock preventing from unauthorized opening and operation
Descriptions
Datasheets
Downloads
Hospital Refrigerator for Biomedical Samples and Medicine Storage Use (NW-YC56L)
Perfect audible and visual alarms including High/Low temperature,High ambient temperature,Power failure , Low battery,Sensor error,Door ajar,Built-in datalogger USB Failure,Main board communication error,Remote alarm
The small medical refrigerator with 3high-quality steel wire shelves, the shelves are adjustable to any height for satisfying different requirements
Standard with build-in USB datalogger, remote alarm contact and RS485 interface for monitor system
1 cooling fan inside, working while door is closed, stopped while the door is opened
The CFC-free polyurethane foam insulating layer is environmentally friendly
The electrical heating glass door filled with insert gas performs well in thermal insulation
The medical refrigerator is equipped with 2 sensors. When the primary sensor fails, the secondary sensor will be activated immediately
The door is equipped with a lock preventing from unauthorized opening and operation
Undercounter Pharmacy Refrigerator 56L
Nenwell 2ºC~8ºC undercounter pharmacy refrigerator NW-YC55L gives you a brand new appearance and is designed in smart under counter size. This small undercounter medical refrigerator is equipped with intelligent temperature controller and brings out constant temperature. It has transparent double-layer tempered glass door with the features of anti-condensation and electrical heating. There are multiple alarm functions to ensure safety of storage. The complete air-cooling design of the vaccine refrigerator ensures no worry about frosting. You can apply the pharmaceutical refrigerator in laboratories, hospitals, pharmacies, disease prevention and control centers, health centers, pharmaceutical factories, medical facilities, and more.
Accurate Control System
This 2ºC~8ºC small medical fridge for medicine comes with high precision temperature control system with high sensitive sensors. And it can well keep the temperature inside the cabinet in the range of 2ºC~8ºC. We design the pharmaceutical refrigerator with high brightness digital temperature and humidity display for automatic temperature control and ensure the display accurately in 0.1ºC.
Powerful Refrigeration System
The small medical / vaccine refrigerator is equipped with brand new compressor and condenser, which is for better cooling performance and well keeps the temperature uniformity with in 1ºC. It is air cooling type with feature of auto-defrost. And the HCFC-FREE refrigerant brings out more effective refrigeration and ensures environmentally friendly.
Ergonomic Operation Design
It has a front opening lockable door with full height handle. The inside of the pharmacy refrigerator is designed with lighting system for easy look. The light will turn on while door is opened, and the light will goes off while the door is closed. The cabinet is made of high quality steel, and the inner side material is Aluminum plate with spraying(Optional stainless steel), which is durable and easy to clean.
Nenwell Countertop Medicine Refrigerator Series
| Model No | Temp. Rang | External Dimension(mm) | Capacity(L) | Refrigerant | Certification |
| NW-YC56L | 2~8ºC | 542*565*632 | 55 | R600a | CE/UL |
| NW-YC76L | 542*566*764 | 75 | |||
| NW-YC130L | 650*625*810 | 130 | |||
| NW-YC315L | 650*673*1762 | 315 | |||
| NW-YC395L | 650*673*1992 | 395 | |||
| NW-YC400L | 700*645*2016 | 400 | UL | ||
| NW-YC525L | 720*810*1961 | 525 | R290 | CE/UL | |
| NW-YC650L | 715*890*1985 | 650 | CE/UL (During application) | ||
| NW-YC725L | 1093*750*1972 | 725 | CE/UL | ||
| NW-YC1015L | 1180*900*1990 | 1015 | CE/UL | ||
| NW-YC1320L | 1450*830*1985 | 1320 | CE/UL (During application) | ||
| NW-YC1505L | 1795*880*1990 | 1505 | R507 | / |
2~8ºC Pharmacy Refrigerator NW-YC56L | |
| Model | NW-YC56L |
| Cabinet Type | Upright |
| Capacity(L) | 55 |
| Internal Size(W*D*H)mm | 444*440*404 |
| External Size(W*D*H)mm | 542*565*632 |
| Package Size(W*D*H)mm | 575*617*682 |
| NW/GW(Kgs) | 35/41 |
| Performance | |
| Temperature Range | 2~8ºC |
| Ambient Temperature | 16-32ºC |
| Cooling Performance | 5ºC |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling Method | Forced air cooling |
| Defrost Mode | Automatic |
| Refrigerant | R600a |
| Insulation Thickness(mm) | L/R:48,B:50 |
| Construction | |
| External Material | PCM |
| Inner Material | Alumlnum plate with spraying |
| Shelves | 2 (coated steel wired shelf) |
| Door Lock with Key | Yes |
| Lighting | LED |
| Access Port | 1pc. Ø 25 mm |
| Casters | 2+2( leveling feet) |
| Data Logging/Interval/Recording Time | USB/Record every 10 minutes / 2 years |
| Door with Heater | Yes |
| Backup battery | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure |
| Accessories | |
| Standard | RS485, Remote alarm contact |
2~8ºC Pharmacy Refrigerator NW-YC56L | |
| Model | NW-YC56L |
| Cabinet Type | Upright |
| Capacity(L) | 55 |
| Internal Size(W*D*H)mm | 444*440*404 |
| External Size(W*D*H)mm | 542*565*632 |
| Package Size(W*D*H)mm | 575*617*682 |
| NW/GW(Kgs) | 35/41 |
| Performance | |
| Temperature Range | 2~8ºC |
| Ambient Temperature | 16-32ºC |
| Cooling Performance | 5ºC |
| Climate Class | N |
| Controller | Microprocessor |
| Display | Digital display |
| Refrigeration | |
| Compressor | 1pc |
| Cooling Method | Forced air cooling |
| Defrost Mode | Automatic |
| Refrigerant | R600a |
| Insulation Thickness(mm) | L/R:48,B:50 |
| Construction | |
| External Material | PCM |
| Inner Material | Alumlnum plate with spraying |
| Shelves | 2 (coated steel wired shelf) |
| Door Lock with Key | Yes |
| Lighting | LED |
| Access Port | 1pc. Ø 25 mm |
| Casters | 2+2( leveling feet) |
| Data Logging/Interval/Recording Time | USB/Record every 10 minutes / 2 years |
| Door with Heater | Yes |
| Backup battery | Yes |
| Alarm | |
| Temperature | High/Low temperature, High ambient temperature |
| Electrical | Power failure, Low battery |
| System | Sensor failure, Door ajar, Built-in USB datalogger failure, Communication failure |
| Accessories | |
| Standard | RS485, Remote alarm contact |
