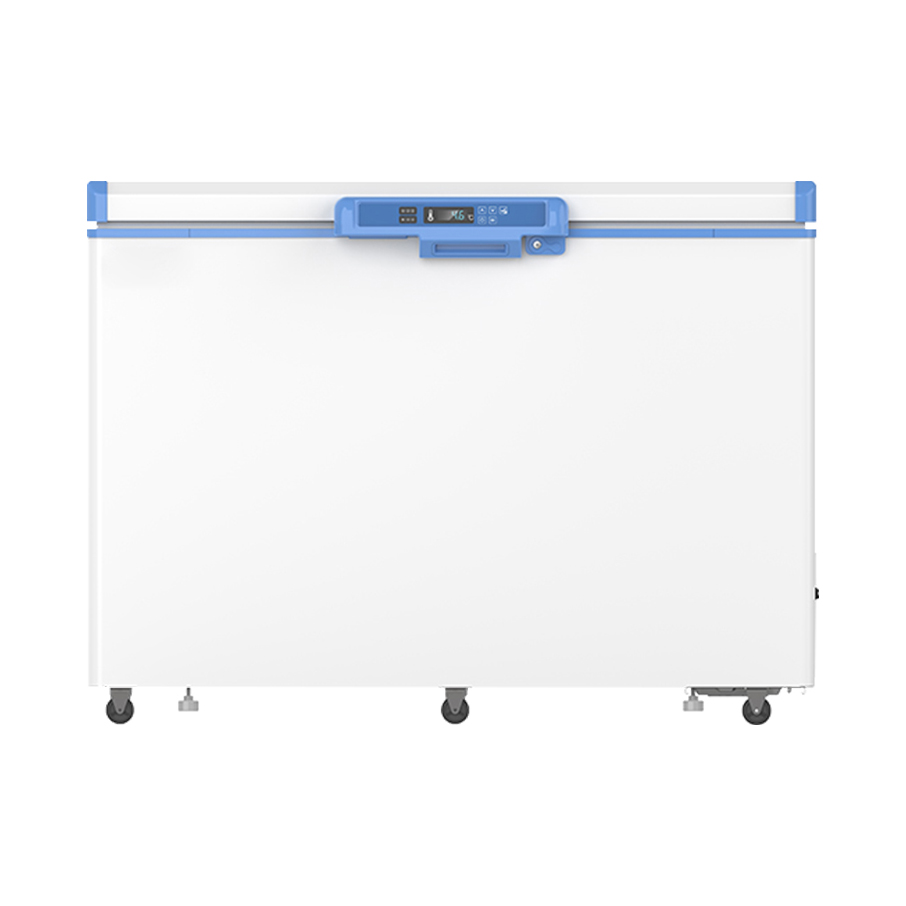

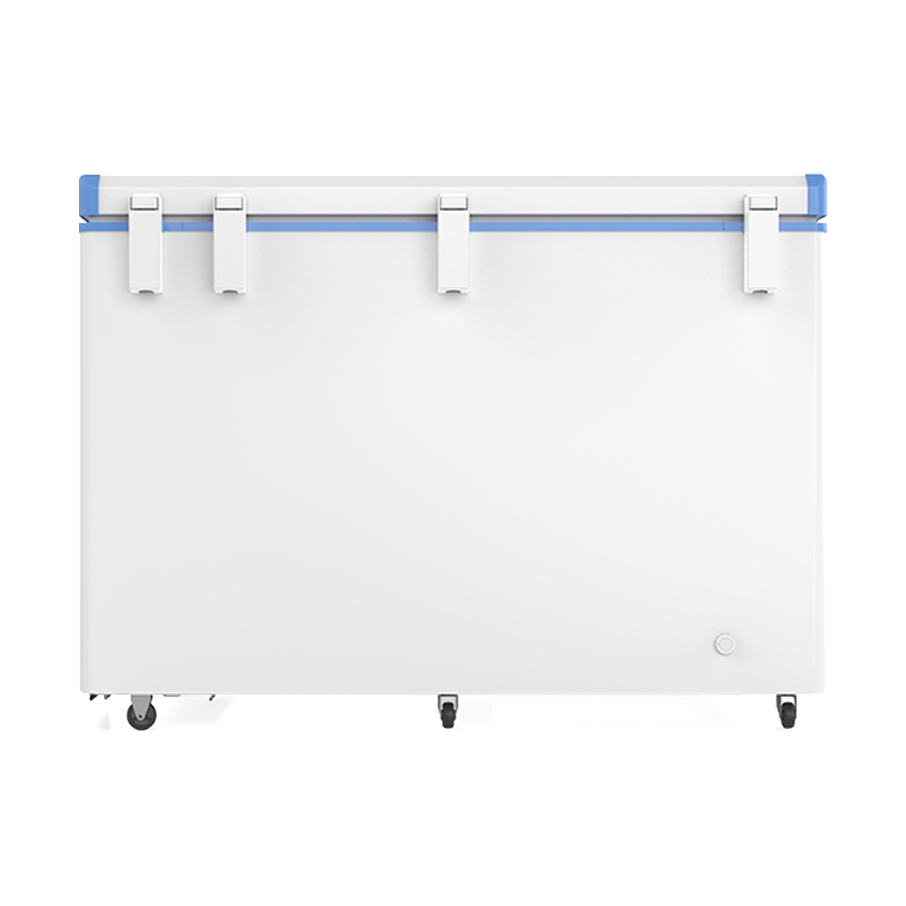

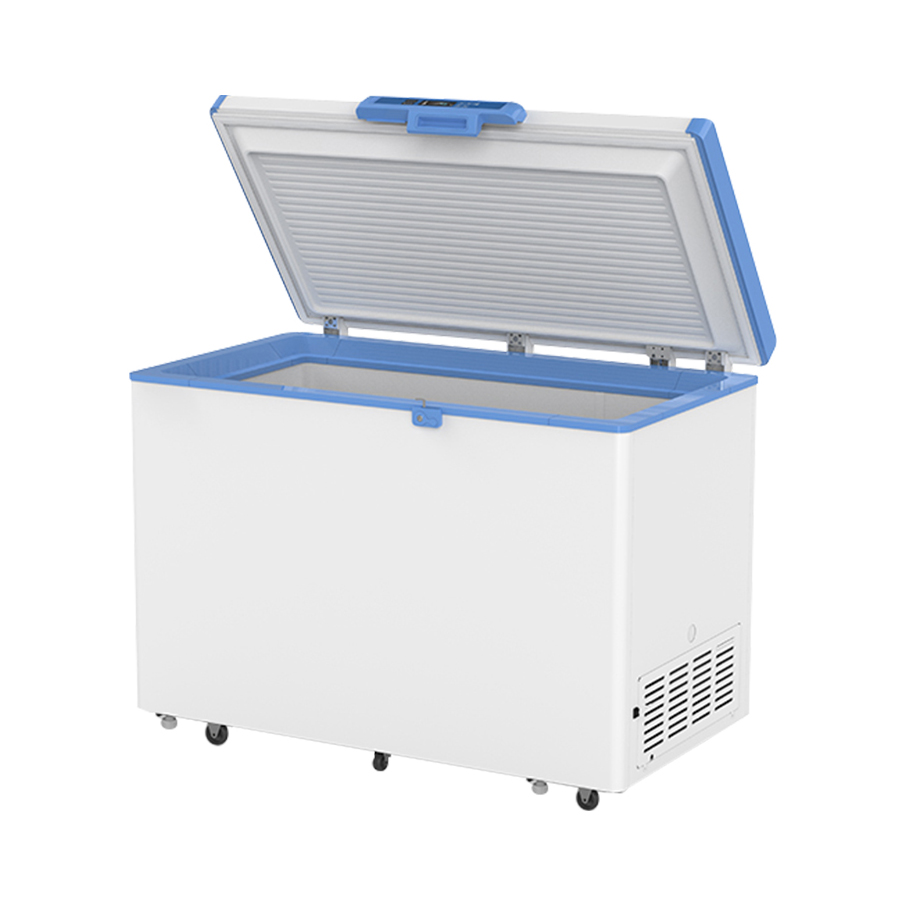

Vaccine Freezer ilr Ice Lined Refrigerator Chest Type

Item No. NW-YC275EW

• Capacity options: 275 liters
• Temperature rage: 2~8℃
• Chest style with top lid
• High-precision control micro-processor
• Warning alarm for errors and exceptions
• Large storage capacity
• Solid top lid with excellent thermal insulation
• Recessed handle prevent collision during transportation
• Lock and key are available
• High-definition LED temperature display
• High-efficiency CFC refrigerant

Descriptions
Datasheets
Downloads

Ice Lined vaccine ilr chest freezer (NW-YC275EW)

  • 4-digit LED high-brightness digital display enables users to set temperature within a range from 2~8ºC, and the precision of temperature display reaches 0.1ºC

  • Equipped with environmentally-friendly CFC Refrigerant  and compressor supplied by an international famous brand, the refrigerator is characterized by fast refrigeration and low noise

  • The built-in door handle can prevent damage during transportation and save space

  • There are 4 universal wheels and 2 caster with brake, which makes it can be moved and fixed easily

Ice Lined Medical Fridge Chest Cooler for Hospital Medicine Use (NW-YC275EW)



Constant Temperature under Intelligent

Nenwell Ice Lined Refrigerator adopted High-precision micro-processed temperature control system;
The cabinet has built-in high-sensitivity temperature sensors, ensuring a constant temperature inside it;

Security System

The well-developed audible & visual alarm system (high and low temperature alarm, sensor failure alarm, power failure alarm, low battery alarm, etc.) makes it safer for storage.
Turn-on delay & stopping interval protection;
The door is equipped with a lock, preventing it from unauthorized opening;


High-efficiency Refrigeration

Equipped with environmentally-friendly Freon-free refrigerant and compressor supplied by an international famous brand, the refrigerator is characterized by fast refrigeration and low noise.

Human-oriented Design

Power on/off key (the button is located on the display panel);
Power-on delay time setting function;
Start-delay time setting function (solving the problem of simultaneous startup of batch products after power failure);



Ice Lined Medical Fridge Chest Cooler for Hospital Medicine Use (NW-YC275EW)

Nenwell Ice Lined vaccine ilr chest freezer Series



Model No.Temp. RangeExternal DimensionCapacity (L)RefrigerantCertification
NW-YC150EW2-8ºC585*465*651mm150LHCFC-freeCE/ISO
NW-YC275EW2-8ºC1019*465*651mm275LHCFC-freeCE/ISO



2~8ºC Ice Lined Refrigerator

ModelNW-YC275EW
  Capacity(L)275

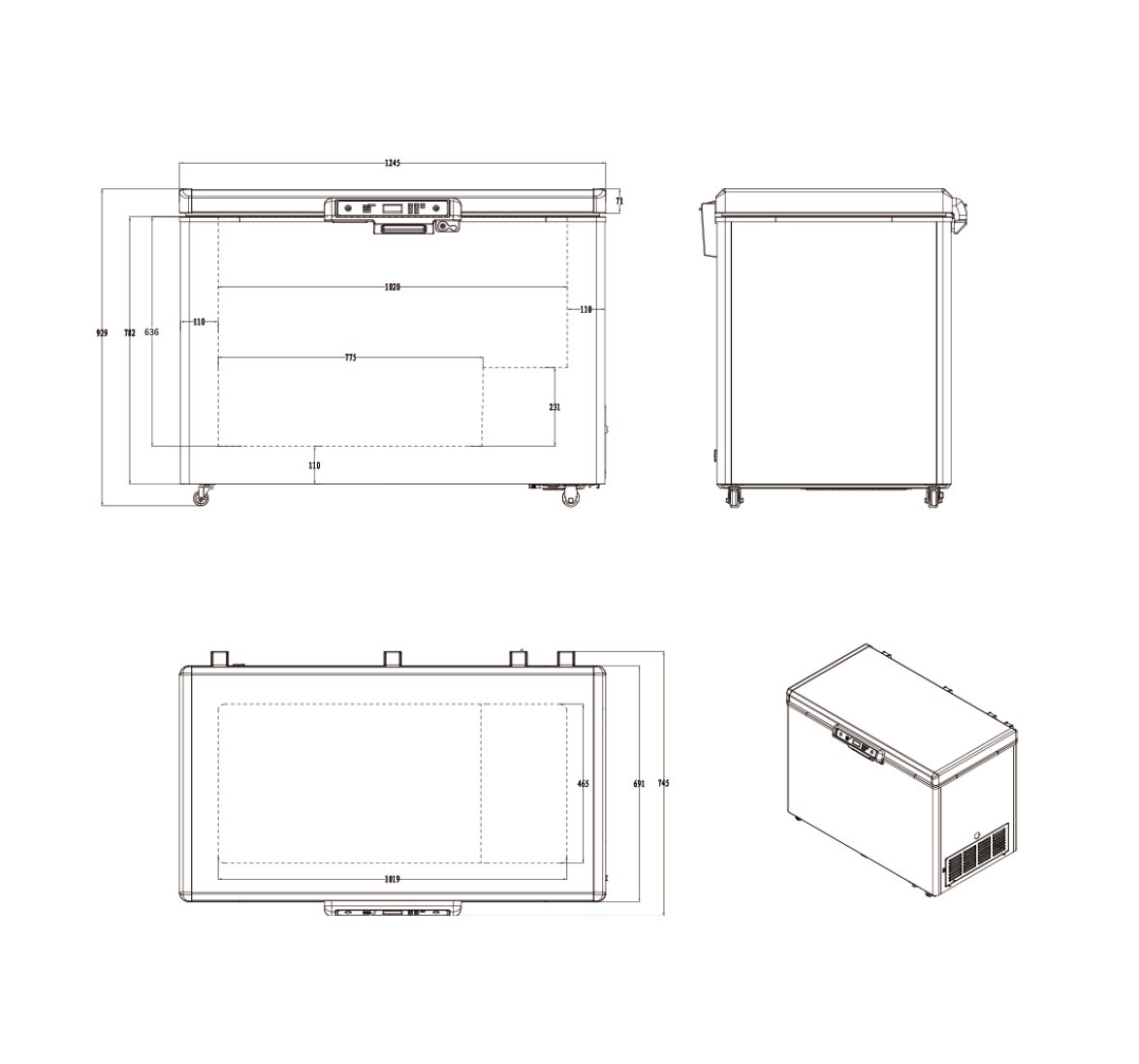

Internal Size(W*D*H)mm1019*465*651
External Size(W*D*H)mm1245*775*964
Package Size(W*D*H)mm1328*810*1120
NW(Kgs)103/128
Performance
Temperature Range2~8ºC
Ambient Temperature10-43ºC
Cooling Performance5ºC
Climate ClassSN,N,ST,T
ControllerMicroprocessor
DisplayDigital display
Refrigeration
Compressor1pc
Cooling MethodDirect cooling
Defrost ModeManual
RefrigerantR290
Insulation Thickness(mm)110
Construction
External MaterialSprayed steel plate
Inner MaterialStainless steel
Coated Hanging Basket4
Door Lock with KeyYes
Backup batteryYes
Casters4 (2 casters with brake)
Alarm
TemperatureHigh/Low temperature
ElectricalPower failure, Low battery
SystemSensor failure

Ice Lined Medical Fridge Chest Cooler for Hospital Medicine Use (NW-YC275EW)

Ice Lined Medical Fridge Chest Cooler for Hospital Medicine Use (NW-YC275EW)

Ice Lined Medical Fridge Chest Cooler for Hospital Medicine Use (NW-YC275EW)

2~8ºC Ice Lined Refrigerator / Ice Lined vaccine ilr chest freezer

ModelNW-YC275EW
  Capacity(L)275
Internal Size(W*D*H)mm1019*465*651
External Size(W*D*H)mm1245*775*964
Package Size(W*D*H)mm1328*810*1120
NW(Kgs)103/128
Performance
Temperature Range2~8ºC
Ambient Temperature10-43ºC
Cooling Performance5ºC
Climate ClassSN,N,ST,T
ControllerMicroprocessor
DisplayDigital display
Refrigeration
Compressor1pc
Cooling MethodDirect cooling
Defrost ModeManual
RefrigerantR290
Insulation Thickness(mm)110
Construction
External MaterialSprayed steel plate
Inner MaterialStainless steel
Coated Hanging Basket4
Door Lock with KeyYes
Backup batteryYes
Casters4 (2 casters with brake)
Alarm
TemperatureHigh/Low temperature
ElectricalPower failure, Low battery
SystemSensor failure
